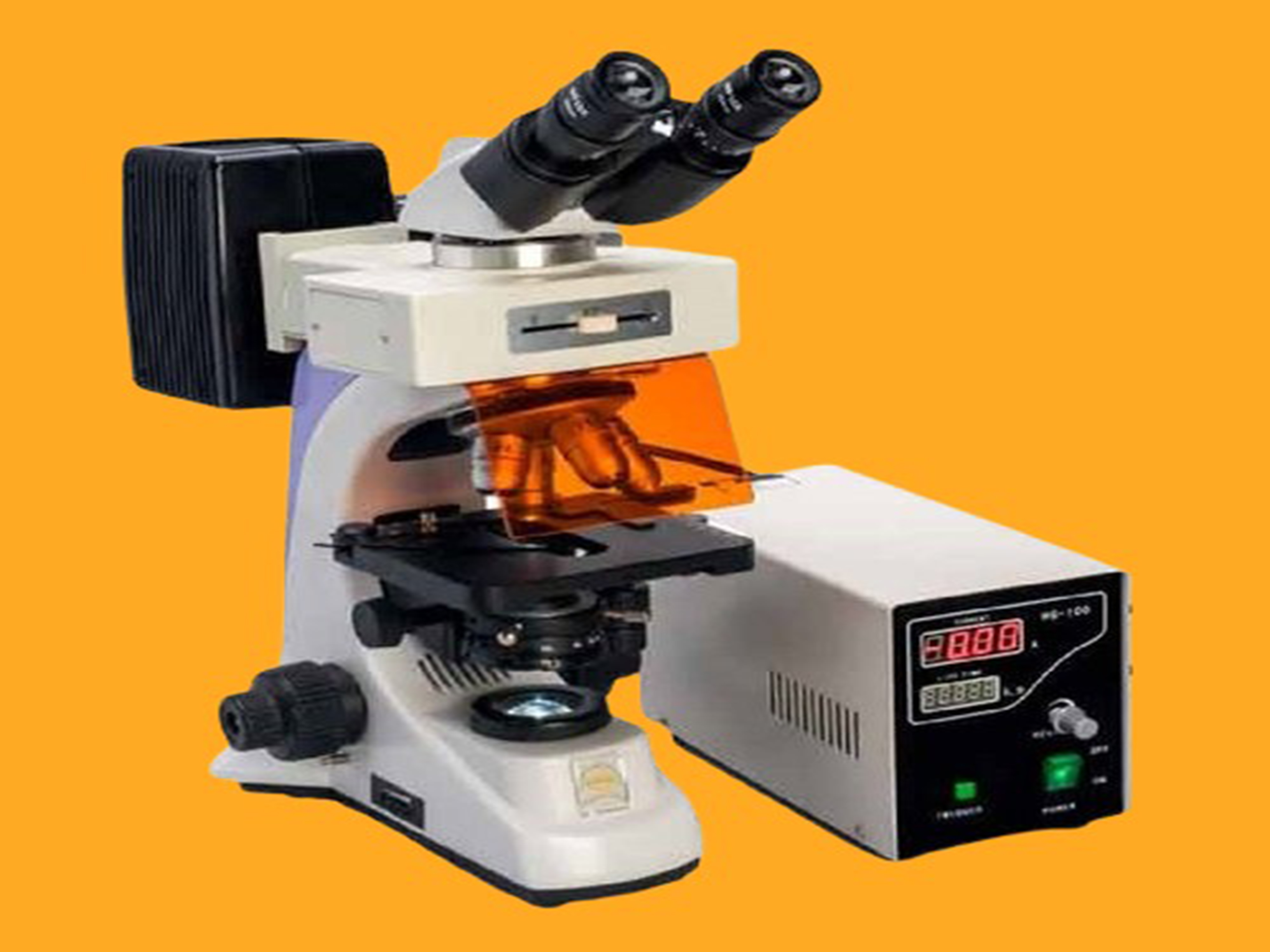

PZQ 102 Fluorescence Research Microscope With Two Filters
Quasmo
Dear customer, please register your account with us to know more about price and discount offers on product. Click here to register.
Product Description :
| Model Name/Number | PZQ-102 |
| Brand | Quasmo |
| Eyepiece | Extra Wide Field Eyepiece EW10x/20 |
| Focusing | Coaxial Coarse & Fine Adjustment, fine-focusing scale value 0.002mm |
| Optical System | Infinite Optical System |
| Viewing Head | Compensation Free Trinocular Head Inclined at 30 Degreei1/4CEInterpupillary Distance 48-75mm |
| Nosepiece | Quadruple Nosepiece |
| Objective | Objective finite Plan Achromatic Objective 4x , 10x, 40x, 100x |
| Condenser | Abbe's Condenser NA 0.9/ 1.25 |
| Stage | Double Layers Mechanical Stage 180x160/ 80x50 mm |
| Kohler Illumination | Transmission illumination Kohler illumination with aperture iris diaphragm and field iris diaphragm |
| Lamp | Halogen Bulb |
| Fluorescent attachment | B Wave band |
| Immersion Oil | Fluorescent Free Oil |
Features :
Microscope with Universal Infinity corrected system for BRIGHTFIELD, FLUORESCENCE APPLICATIONS AND should be useful to DIC Applications later, Built-in-Kholer 6V /20W Halogen illumination for transmitted light with light preset switch, Light intensity LED Indicator, built in filters (ND6, ND25 etc) & Hg HBO-100W Mercury lamp attachment for Reflected light Fluorescence application and filter set for Blue excitation. EX490nm (blue), EX545nm (Green) exciting light fitter system, O ordinary light system, Interchangeable Trinocular with inclined 30 degree for observation, Ceramic coated scratch proof co-axial stage with left or right hand low drive X & Y control with torqued adjustment, Universal Abbes condenser for bright field, applications & UV Protection screen
