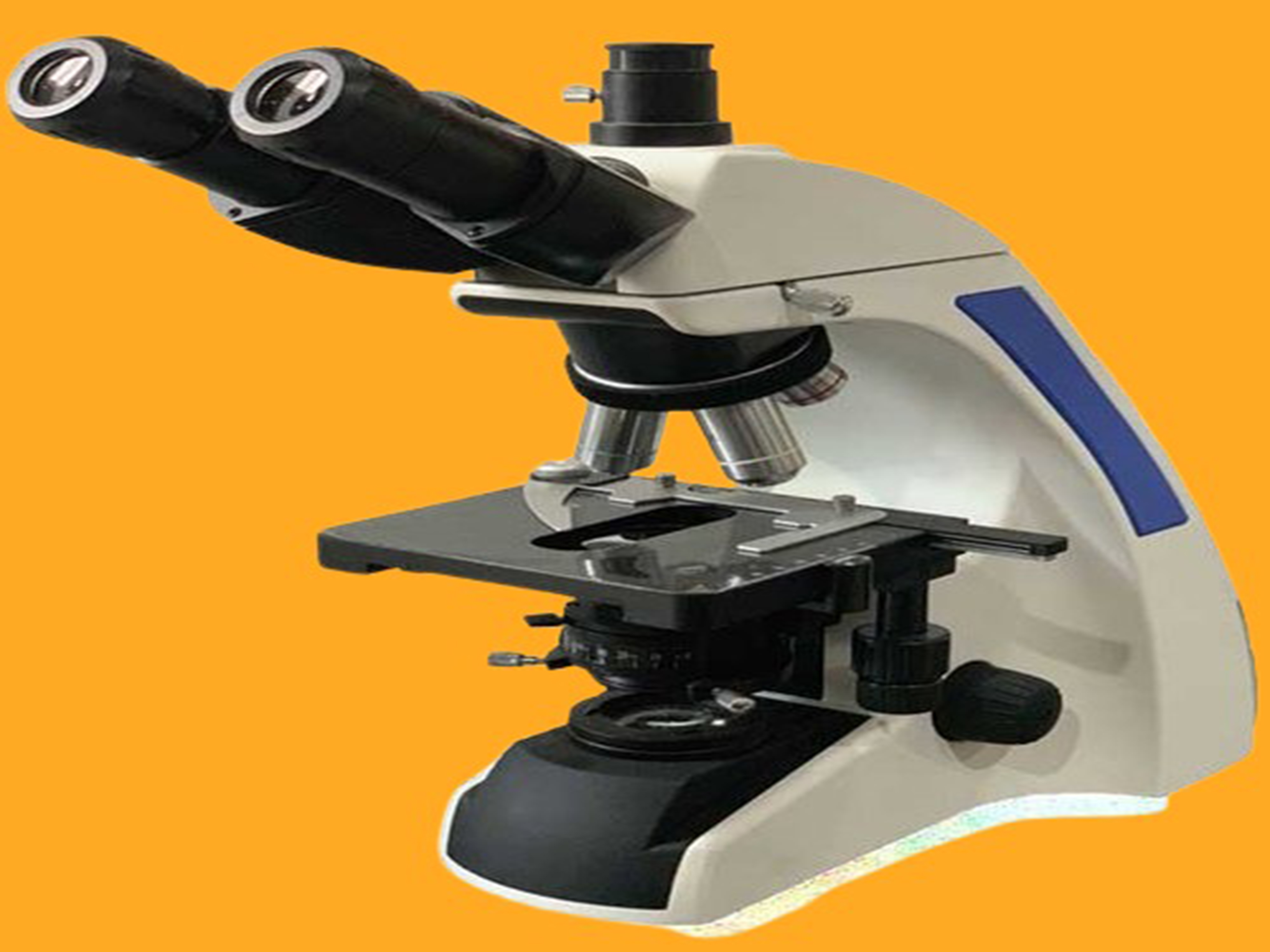

Research Microscope Star 7 Pro

Quasmo

Product Kit Insert.pdf

Product Description :

• Comfortable observing with compensation free binocular/ trinocular head Inclined at 30 degree suitable for observer with wide interpupillary range of 50-75mm

• Larger viewing area with extra wide field eyepiece

• Big operating space with backward nose piece running on stainless steel ball bearing

• Rectangular double layer mechanical stage with comfortable operation with low position adjustable knobs

• Perfect image with High Contrast colour corrected optics

Optical System: High Contrast finite colour corrected Optical system

Magnification: 40x to 1000x visiual magnicifation

Stand: Aluminium single die-cast stand for enhanced comfort and stability

Observation Head: Sidentopf Binocular or Trinocular head, 30 degree inclined , 360 degree rotatable , interpupilary distance 50-75mm

Eye-pieces: Widefield 10x/20mm with foldable rubber eye guards, antifungal & anti-reflection hard coated with dual diopteric adjustment

Nose-piece: Reverse angle quadruple nose-piece (Ball bearing type) with precise click stops

Objectives: QUSP series high contrast flat field DIN Plan Achromatic objectives 4x,10x, 40x(spring loaded) , 100x(spring loaded,oil)  , antifungal & anti -reflection hard coated

Mechanical Stage: Double plate stage 190mm X 140mm , X/Y travel range 90mm X 65mm. Low drive right hand movement controls hard coated surface for scratch resistance. Double specimen holder clip.

Condenser: Sub-stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with frosted white/blue filter, anti-fungal & anti- reflection coated. Rack and pinion movements on stainless steels guides

Focusing Control: Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.2mm/rotation with maximum 2 micron scale increment.

Illumination: Koehler Halogen 6v-20w or LED 3W illumination with variable illumination control. Up to 2,000 hours of Halogen lamp life and 100,000 hours of LED Life

Electronics: Universal input 110v-240v AC, 50/60Hz. Built in voltage stabilizer

Package Contents: Power cable(5ft) , Immersion oil, Spare bulb (in halogen only) , Nylon dust cover & cleaning cloth, styrofoam casing
